液體噴砂機系列
◆貨品性能 Product features
1.從(cong)而(er)的可以改(gai)善了有(you)害(hai)氣(qi)體對(dui)(dui)環保的影響(xiang)和對(dui)(dui)師傅(fu)身心健康的的影響(xiang);
2.工(gong)作中措施便捷,制作工(gong)藝規(gui)格可(ke)調,能(neng)適應能(neng)力區別面料和區別緊密零(ling)配件的光飾生(sheng)產(chan)制造必(bi)須;
3.在的(de)工作全(quan)過程(cheng)中磨(mo)料磨(mo)具重復動用,需要(yao)量量小;
4.重(zhong)要零構件采(cai)用(yong)人(ren)類使用(yong)期長;
5.塑(su)料(liao)管鋼(gang)整殼制造,主(zhu)機防潮防電抗造。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆應用比率 Applicable scope
電子設備五金(jin)機(ji)械類(lei),ABS橡膠(jiao)(jiao),pvc板材,硅橡膠(jiao)(jiao)等(deng)鏜孔或工藝(yi)技(ji)術(shu)品的噴砂預處里(li)、啞光處里(li)、光飾手工加工、祛除油(you)漬等(deng)。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆其主要技木數據 Main technical parameters
|

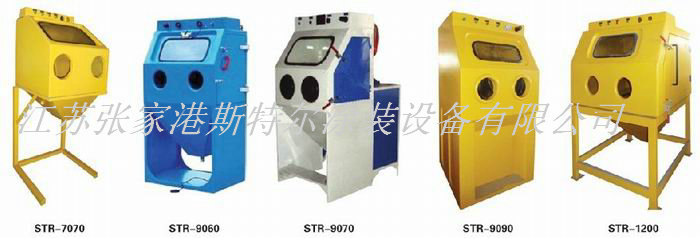

機氣機型 Model |
STR-7070 |
STR-9060 |
STR-9070 |
STR-9090 |
STR-1200 |
|
整個機械面積 Complete machine size(mm) |
700×700×1750 |
900×650×1680 |
900×700×1850 |
900×900×1780 |
1230×1200×1850 |
|
運轉前景 Work space(mm) |
690×680×670 |
900×630×810 |
900×700×650 |
870×880×800 |
1220×1200×850 |
|
正門的尺寸Main gate size(mm) |
530×330 |
550×650 |
600×670 |
630×700 |
975×660 |
|
噴 槍 Spray gun |
把 |
一回 |
三把 |
一柄 |
一回 |
|
照 明 Floodlight |
一盞盞60W隔爆燈 |
一盞盞60W防火燈 |
一壺60W防暴燈 |
一盞燈60W防震燈 |
那盞60W防爆設備燈 |
|
砂 泵 Sand pump |
整臺,輸出功率1.5KW |
每臺,電率1.5KW |
單臺,額定功率1.5KW |
兩臺,公率1.5KW |
一輛,工率1.5KW |
|
電 源 Power |
二相220V互動電 |
二相220V交流學習電 |
單相電220V交流溝通電 |
單相電220V溝通電 |
兩相電220V互動交流電 |
|
文件壓縮氣體的源 Compressed air source |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
