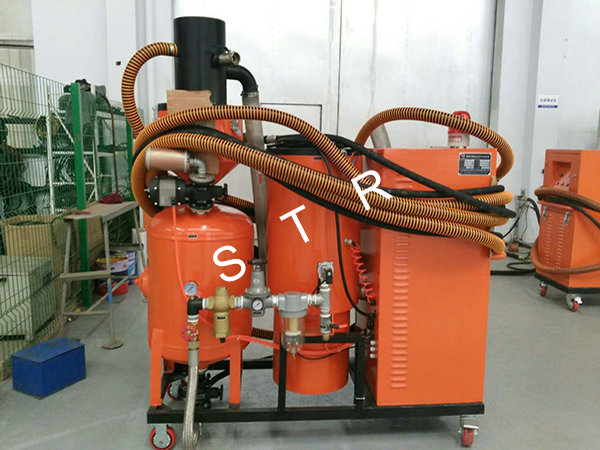

無塵自動循環回收噴砂機系列

◆成品共同點 Product features（請(qing)從上到下瀏覽記錄大點量實例(li)相片供選取）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”車間空氣的有害氣體衛生監督標準的。砂料、有害氣體全自動收回、轉移、循環法動用，辦公車間干凈整潔無有害氣體生態破壞。生產設備壞保設計方案，大大的糾正了技術工的勞動課剛度和使用的環境要裝噴吹閥體系，可電腦一鍵處理凈水器濾芯污垢。原機分水過濾程序器。可對擠壓室內空氣完成首次灰色收入分離處理。電腦一鍵送料，將吸砂頭插入表格砂料中，通電高壓氣泵體系將電腦一鍵送料。PLC可代碼編程操控（加裝音響），料位告警特點(選擇裝配)。存在調壓轉鈕、反吹風功能鍵。可靠的氣控平衡裝置與研磨材料閥。上班半經20-70米，表面層工作分等級達Sa2.5-3級。配制衛生防水膠供電線插板啟閉面板供電線，簡便的控住。配制的控住供電線民航插板啟閉面板供電線簡便的控住。個性外觀的防灰的控住啟閉面板與電氣控住箱。維持與點檢特殊簡便。車式膽機機箱結構類型，防水防雨防灰，中國電信簡便。膽機機箱門邊使用快鍵門瑣連接方式，折裝簡便。把手啟閉的控住（電氣控住DC24V）。一機三用，具備著建成式、工業制造吸砂器、節能環保性兩種產品的模塊。噴砂設備主機適用特別的控住回路開關，崗位重壓在0.2Kpa-0.8Kpa規模內無數個緩解，可必須不一零件的噴砂技藝必須。適用規模：去銹、除漆面、焊接縫處   ; 理（包涵裝飾管圓管管道焊接基本該房產項目周邊的去黑、去焊渣除理）去毛刺現象、飛邊、腐蝕皮、裝飾管圓管，鋁門窗外觀的雅韻型亞光除理（耐污性好點、可遮住刮痕）、去商混土、石雕外觀污圬等除理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆大部分技術水平參數指標 Main technical parameters

絲機尺寸 Model	STR-B型無塵自動循環回收式噴砂機
工(gong)作中電原 Work power	380V 50HZ
空氣質(zhi)量學習壓(ya)力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
變頻電(dian)動機(ji)熱(re)效率 Motor power	4kw
作業(ye)利用率 Work efficiency	6-10m2
作業弧長 Work radius	10m 可隨著(zhu)各種需求加寬(kuan)，按照咨詢了解(jie)。qq客服
工(gong)作中模式 Work form	自然(ran)間歇(xie)回收公司Automatic cycle recovery
快(kuai)速(su)清(qing)理級(ji)別為 Clean level	Sa2-3
越來(lai)越粗(cu)糙(cao)度 Roughness	60μm以內
含水量 Weight	260kg
外觀規格 Shape dimension	1380×830×1700mm
砂料(liao)尺(chi)寸(cun)規(gui)格 Sand material specifications	20-100#之上（1.0mm-0.04mm）

◆實用條件 Applicable scope

1.干凈規(gui)范(fan)高且(qie)無所以吸塵(chen)專用設備的(de)的(de)場合(he)；

2.加工層級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

實用區域：防銹處理、除刷漆焊接縫操作去麻點、飛邊、硫化皮不透鋼、鋁材廠家表皮的典雅型(xing)亞光治理(li)（耐污性好一點、可遮蓋住劃破）去c30混凝(ning)土土、石雕表面層(ceng)污圬(wu)等治理(li)。

（大概質(zhi)料可選取A型或(huo)打電話(hua)我我司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 物品特征 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)縮(suo)短，目地說是不(bu)便野外安裝可移動不(bu)便，很大(da)(da)程度上的減低(di)了工作抗拉強度，然而處置(zhi)速(su)度在我(wo)們國家相同型好產(chan)品(pin)(pin)安全；能夠(gou)社(she)會上客(ke)人的不(bu)同同意(yi)，并(bing)就已(yi)經能夠(gou)了大(da)(da)量的擴大(da)(da)和操作！（實際的知料可關(guan)聯性A型或致電我(wo)品(pin)(pin)牌）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

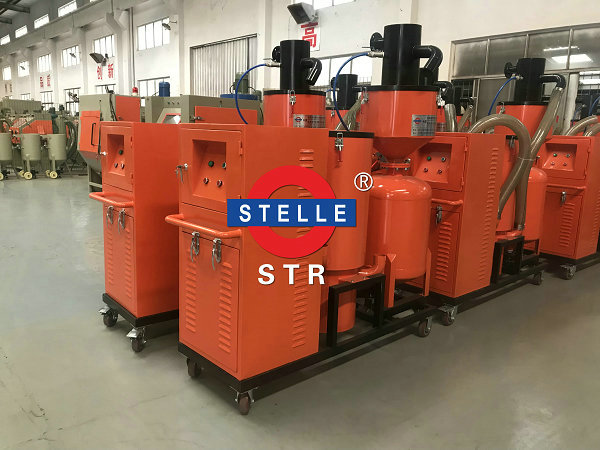

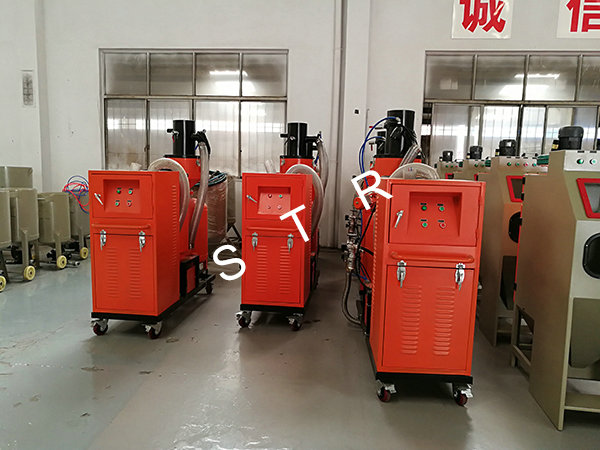

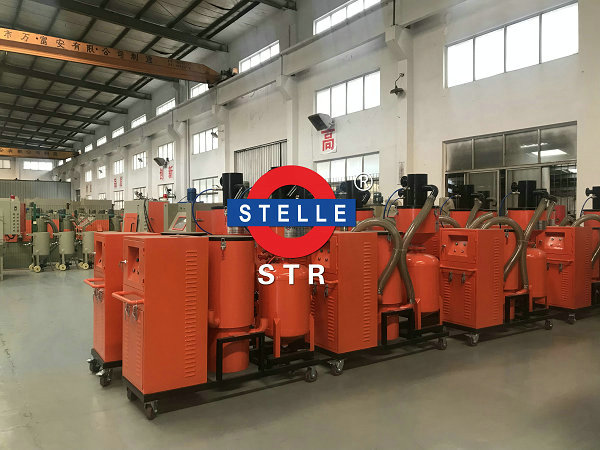

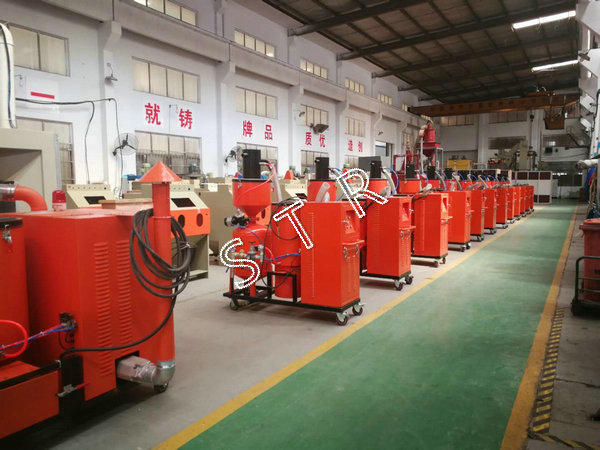

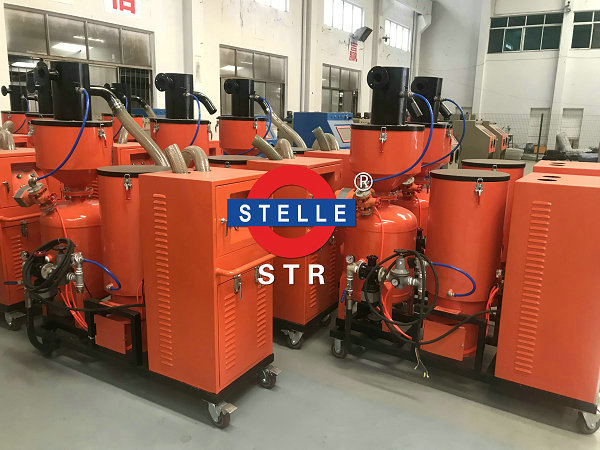

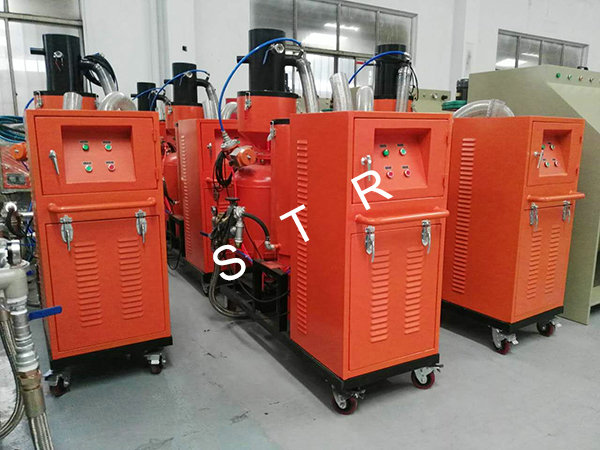

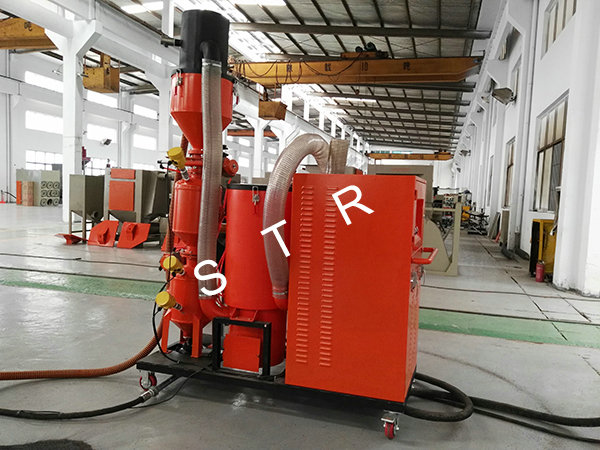

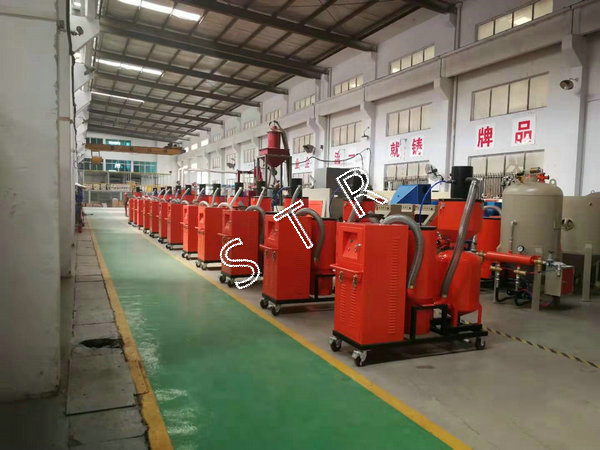

部份無塵自動循環環保型噴砂機案例:
