◆企業產品亮點 Product features
1. 的設計新穎別致,形態精(jing)美,干凈功能好;
2. 可(ke)調節為(wei)式颶(ju)風離心轉移機(ji),能將該(gai)用(yong)研(yan)磨材料(liao)與很小粉塵爆炸離心轉移,好的(de)(de)研(yan)磨材料(liao)立(li)即使(shi)用(yong)的(de)(de);
3. 注意零結構(gou)件通過(guo)優越進口(kou)量配件上的(de),動用保修(xiu)期長;
4. 加(jia)工制作(zuo)鑄件表明(ming)平均;
5. 多治具設計;方法使用員可同一方法使用噴砂。依照企業的需求,供選擇擇全電腦自動或電腦自動 ;可按朋友規定要求訂做!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆使用的范圍 Applicable scope
家具板材,筆記本(ben)電腦護殼,音響(xiang)低音炮開關,面包烤(kao)盤等正等軸測圖及(ji)方體工(gong)件表面的噴砂加工(gong)廠。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆重點高技術指標表 Main technical parameters
|
設備款式 Model |

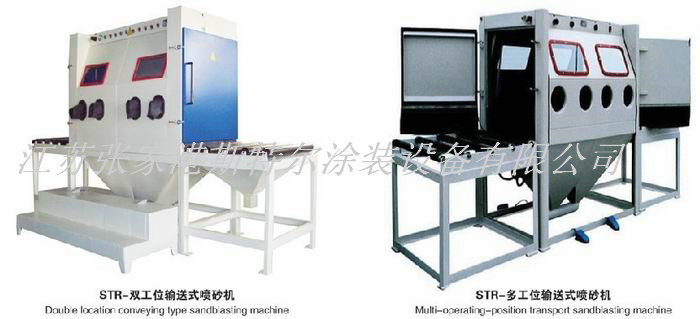

STR-多工位輸送式噴砂機 |
|
整(zheng)套(tao)裝置寬度 Complete machine size(mm) |
3000×1000×1700 |
|
上班(ban)辦公(gong)空間 Work space(mm) |
2000×1000×800 |
|
外傳(chuan)送面積 Conveying the size(mm) |
500×1000×1000(2件(jian)) |
|
布袋除塵箱尺寸 Dedust box sizes(mm) |
600×600×1800 |
|
分離器三相電機 Separator motor |
220V 50HZ 550W |
|
分離出來器排風量 Separator air volume |
8.5m3/min |
|
減少(shao)環境(jing)源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W防爆設(she)備燈 |
|
機設備體重 Machine weight |
550kg |
